1501 Series
Floating suction

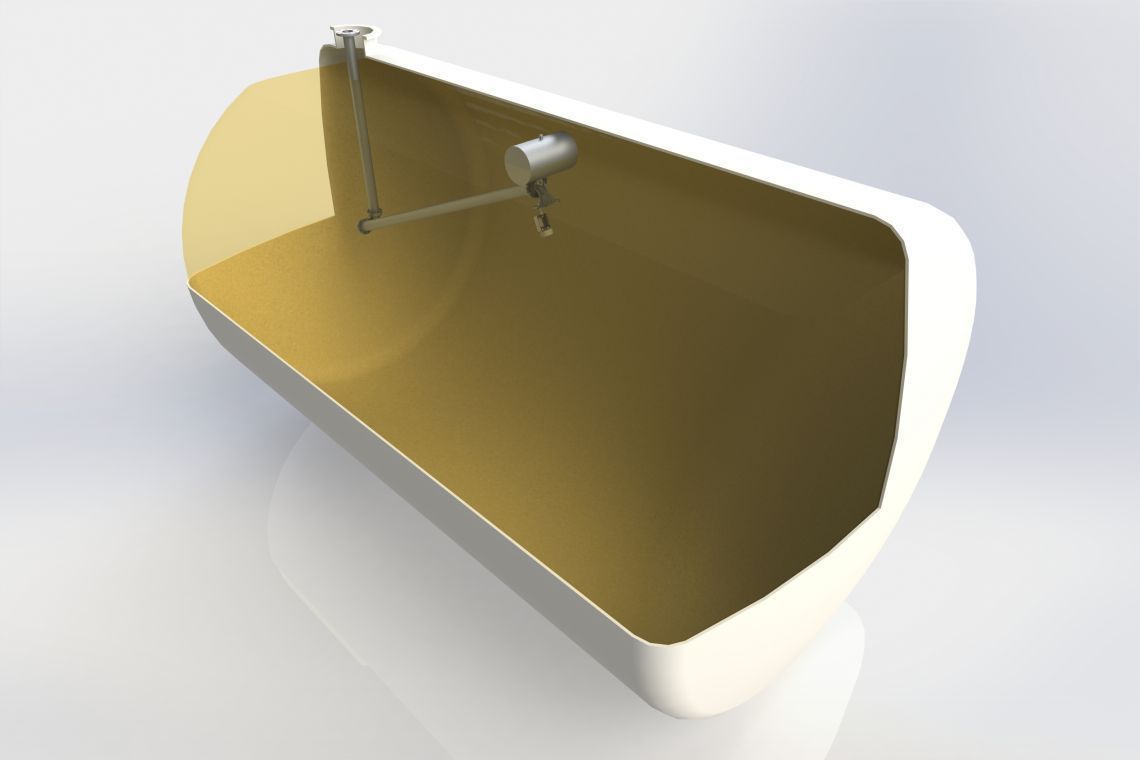

The series 1501 Floating Suction Units are used on underground horizontal tanks and allow that the suction, through the manhole, is always near the surface where the liquid is cleaner. Main applicaton is on Aviation Fuels and the floating suctions are built with compatible materials.Request the data sheet
Get the data sheet with all the product features. Fill out the form to receive the PDF.
Features
Standard configuration
- Vertical suction pipe in aluminium alloy.
- F-40 style Swivel Joint.
- Main pipe in aluminium alloy.
- Bell-mouth.
- Floater.
- Lifting cable in stainless steel.

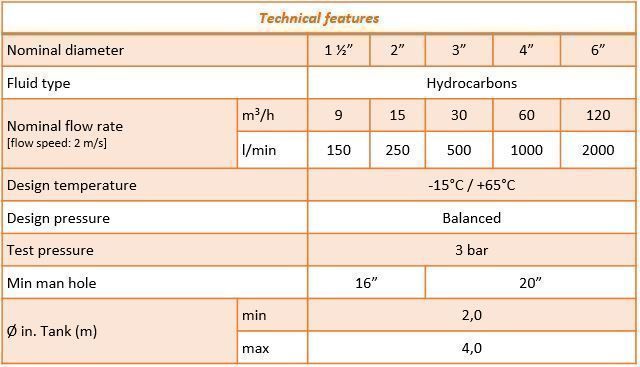

Technical features
Standards and Regulations
- Conformity Declaration of current Directive ATEX for Equipment used in Potentially explosive atmospheres.
- Customs Declaration of certification for Russia, Kazakhstan, Belarus, EAC certification.
- Standard API-ASTM-ANSI-TTMA.
Options upon request
- Floating Suction material : made of carbon steel, stainless steel AISI 304 or AISI 316.
- Special end pipe, to replace the bell-mouth.
Accessories
- Foot valve made of aluminium or made of stainless steel. It is used to keep the fluid in the primary pipe.
